Unit Price: GBP 1250.00 / EUR 1550.00 / USD 1800.00
Price Includes: TimeTools TA210 GPS NTP Server Appliance, High-Gain GPS Timing Antenna, Antenna Mount, 20m Pre-Terminated Low-Loss Antenna Cable, IEC Power Lead, Quick Start Guide, 3-Year Warranty.
Designed and Manufactured in the UK.

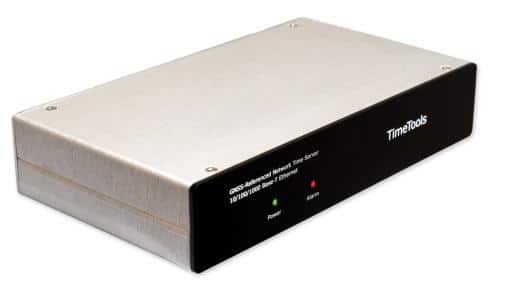

TimeTools TA210 is a fast, security-hardened, GPS-referenced Stratum-1 Network Time Protocol (NTP) Server in a 1U half-rack sized, compact enclosure. It can provide a precise time reference for computer networks of almost any size and can accurately synchronize any NTP or SNTP compatible client.
With a powerful network optimized, 64-bit processor, the TA210 can process in excess of 20,000 NTP polls per second (1.2 million per minute) without affecting timing. Allowing a large number of network time clients to synchronise with extremely high precision.
Featuring Gigabit Ethernet (GbE) and a 72 channel GPS timing receiver which provides reliable reception of the GPS satellite system.
TimeTools TA210 also incorporates a high-stability Temperature-Compensated Crystal Oscillator (TCXO), which provides extended Stratum-1 operation in the event of any loss of GNSS signal lock.
Highlights
- Designed and Manufactured In The UK.
- Security-Hardened, GPS-Referenced Stratum-1 NTP v4 Network Time Server.
- Fast, 20,000 NTP Polls Per Second (1.2M Per Minute), For Precise Client Synchronization.
- High-Stability, Temperature-Compensated Crystal Oscillator (TCXO) For Extended Stratum-1 Operation In The Event Of Any Loss of GPS Signal Lock.
- Network-Optimized Gigabit Ethernet (GbE).
- Advanced, 72 Channel, GPS Receiver For Reliable Reception Of The GPS Satellite System.
- Powerful, Easy To Use, Web Interface With Command Line Interface For Advanced Users.
- IPv4 and IPv6 Internet Protocols.
- Simple Network Management Protocol Monitoring (SNMP v1, v2c, v3).
- Full MD5, SHA1 and SHA256 NTP Authentication For Enhanced Security.
- Peer To Multiple External NTP Servers For Improved Redundancy.
- 3-Year Warranty, Free Firmware Updates and Lifetime Support.
- CE and UKCA Compliant With Full EMC and Electrical Safety Test Reports.
Applications
Synchronize Microsoft Windows, Linux, servers, workstations and network infrastructure.
Accurately synchronize time critical processes to a traceable source of time inside your firewall.
Network timing, measurement and synchronization.
Automation Systems, SCADA, Network Monitoring and Control Systems.
CCTV, DVR and Video Management Systems (VMS).
Access Control Systems (ACS).
Master clock for NTP synchronized clock systems.
Customer References and Testimonials
A large number of prestigious organisations from around the world trust TimeTools for their synchronization requirements. Here is a small selection:
“Not only has the TimeTools product performed as advertised but it is also cost-effective. Outstanding customer support. What more could anyone want?”
Carollo Systems.
“The products are like no other, they do the job very well, and security is good on the products, as they need to be. We just ordered two more.”
Danish Defence IT Agency.

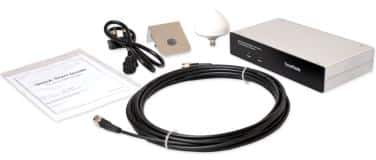

Product Codes and Scope of Supply
Product Code: TA210-P00
Includes:
TimeTools TA210 GPS NTP Server Appliance
High-Gain GPS Timing Antenna.
GPS Antenna Mount.
20m Low-Loss Antenna Cable.
IEC Power Lead.
Quick Start Guide
Options and Extras
CN-UB-280DC-SB Pheonix Contact GNSS Surge Suppressor, essential for outdoor located Antennas.
Customised Antenna Cables to accommodate specific installation requirements are available on request.
Resources
Warranty Terms & Conditions
TimeTools Limited warrants the TA210 NTP Server appliance to be free from defects in material and workmanship during a three-year period.
TimeTools Limited warrants GPS/GNSS Antennas, Cables and Surge Suppressors to be free from defects in material and workmanship during a twelve-month period.
The Warranty begins on the date the unit is shipped from TimeTools Limited.
Please see TA-Series Hardware Guide for full warranty terms and conditions.
Help & Support
TimeTools Limited provides free email and telephone support for the lifetime of the TA-Series product.
For help and support, please email info@TimeToolsLtd.com.
