TA610 Ultra-Fast GPS-Galileo NTP Server
TimeTools TA610 is an ultra-fast, security-hardened, GPS-Galileo (Multi-GNSS) referenced Stratum-1 Network Time Protocol (NTP) Server in a 1U rack-mountable enclosure.
- Security-Hardened, Enterprise-Class, Stratum-1 NTP v4 Network Time Server.
- Ultra-Fast, 50,000 NTP Polls Per Second (3M Per Minute), For Precise Client Synchronization.
- Advanced, 92 Channel, Multi-GNSS Receiver For Concurrent, or Selectable, Reception Of GPS (US) and Galileo (EU) Satellite Systems.
- High-Stability, Temperature-Compensated Crystal Oscillator (TCXO) For Extended Stratum-1 Operation In The Event Of Any Loss of GNSS Signal Lock.
- Network-Optimized Gigabit Ethernet (GbE).
Find out more about TimeTools TA610 Ultra-Fast GPS-Galileo NTP Server.
TA310 Ultra-Fast GPS NTP Server
TimeTools TA310 is an ultra-fast, security-hardened, GPS-referenced Stratum-1 Network Time Protocol (NTP) Server in a 1U rack-mountable enclosure.
- Security-Hardened, Enterprise-Class, Stratum-1 NTP v4 Network Time Server.
- Ultra-Fast, 50,000 NTP Polls Per Second (3M Per Minute), For Precise Client Synchronization.
- High-Stability, Temperature-Compensated Crystal Oscillator (TCXO) For Extended Stratum-1 Operation In The Event Of Any Loss of GPS Signal Lock.
- Network-Optimized Gigabit Ethernet (GbE).
- Advanced, 92 Channel, GPS Receiver For Reliable Reception Of The GPS Satellite System.
Find out more about TimeTools TA310 Ultra-Fast GPS NTP Server.
TA210 Compact GPS NTP Server
TimeTools TA210 is a fast, security-hardened, GPS-referenced Stratum-1 Network Time Protocol (NTP) Server in a 1U half-rack sized, compact enclosure.
- Security-Hardened, GPS-Referenced Stratum-1 NTP v4 Network Time Server.
- Fast, 20,000 NTP Polls Per Second (1.2M Per Minute), For Precise Client Synchronization.
- High-Stability, Temperature-Compensated Crystal Oscillator (TCXO) For Extended Stratum-1 Operation In The Event Of Any Loss of GPS Signal Lock.
- Network-Optimized Gigabit Ethernet (GbE).
- Advanced, 72 Channel, GPS Receiver For Reliable Reception Of The GPS Satellite System.
Find out more about TimeTools TA210 Compact GPS NTP Server.

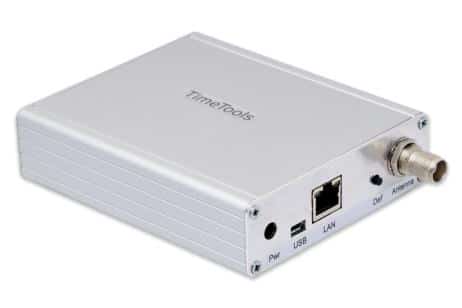

TimeTools TA110 Compact GPS NTP Server
TimeTools TA110 is a fast, security-hardened, GPS-referenced Stratum-1 Network Time Protocol (NTP) Server in a compact enclosure.
- Security-Hardened, GPS-Referenced Stratum-1 NTP v4 Network Time Server.
- Fast, 10,000 NTP Polls Per Second (600K/minute), For Precise Client Synchronization.
- High-Stability, Temperature-Compensated Crystal Oscillator (TCXO) For Extended.
- Stratum-1 Operation In The Event Of Any Loss of GPS Signal Lock.
- Network-Optimized Gigabit Ethernet (GbE).
- Advanced, 32 Channel, GPS Receiver For Reliable Reception Of The GPS Satellite System.
Find out more about TimeTools TA110 Compact GPS NTP Server.
GNSS Antennas and Accessories
TimeTools GPS and Multi-GNSS antennas and accessories provide reliable signal reception of GPS and GNSS signals for timing systems.
The Global Positioning System (GPS) consists of a constellation of 31 orbiting satellites. Each satellite contains a highly accurate atomic clock that is periodically synchronized to an Earth based reference clock. The GPS system in conjunction with NTP hardware provides a reliable time reference for network timing applications.
Advantages of GNSS NTP Servers.
The GPS system is synchronized to atomic time. It provides a highly accurate source of time for timing applications.
Reliable signal reception. Reception of satellite signals is generally far more reliable than ground based transmitters.
GPS signals can be received anywhere on Earth. A constellation of 31 active satellites constantly orbit the Earth to provide constant world-wide signal reception
Fail safe. The constellation of 31 orbiting active satellites provide a relatively fail-safe system.
Disadvantages of GNSS NTP Servers.
A GPS antenna requires ideally requires an unobscured view of the sky. However TimeTools NTP servers have a high-sensitivity GPS receiver, which can often receive GPS signal with and indoor or window mounted antenna.
The service is provided by and relies on a single operator – the US government. However, a multi-GNSS solution, such as TimeTools T550 can utilize multiple satelite systems, GPS, GLONASS, Galileo, BeiDou providing increased reliability and redundancy.
